3003 4343 aluminum radiator tube for electronic vehicle
| Payment Type: | L/C,T/T,Western Union |
|---|---|
| Terms of Trade: | FOB,CFR,CIF,EXW |
| Min. Order: | 1 Piece/Pieces |
| Delivery Time: | 15-30 Days |
| Packaging: | Standard Exporting Package for Aluminum condenser tube for vehicle |
|---|---|
| Productivity: | 100000pcs per month |
| Brand: | Trumony |
| Transportation: | Ocean,Land,Air |
| Place of Origin: | China |
| Supply Ability: | 1200000pcs per year |
| Certificate: | ISO 9001 |
| HS Code: | 7608 |
| Port: | Shanghai |
Basic Info
Model No.: TR-J176
Product Description
3003 4343 aluminum radiator tube for electronic vehicle
1.Application:
2) 3000 series:3102, 3003
3) 4000 series: 4343 etc
| No. | Alloy | Temper | Tensile Strength(Mpa) | Yield Strength(Mpa) | Elogation(%) |
| 1 | 1050 | O/F/H111/H112 | ≥ 65 | ≥ 20 | ≥ 25 |
| 2 | 1100 | O/F/H111/H112 | ≥ 75 | ≥ 20 | ≥ 25 |
| 3 | 1197 | O/F/H111/H112 | ≥ 80 | ≥ 25 | ≥ 20 |
| 4 | 3102 | O/F/H111/H112 | ≥ 75 | ≥ 20 | ≥ 25 |
| 5 | 3R03 | O/F/H111/H112 | ≥ 80 | ≥ 25 | ≥ 20 |
5.Chemical Composition
| No. | Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | V | Ti |
| 1 | 1050 | ≤ 0.25 | ≤ 0.40 | ≤ 0.05 | ≤ 0.05 | ≤ 0.05 | - | ≤ 0.05 | ≤ 0.05 | ≤ 0.03 |
| 2 | 1100 | ≤ 0.95(Fe+Si) | 0.05-0.20 | ≤ 0.05 | - | - | ≤ 0.10 | - | - | |
| 3 | 1197 | ≤ 0.15 | ≤ 0.20 | 0.40-0.55 | 0.10-0.20 | ≤ 0.03 | ≤ 0.05 | ≤ 0.05 | ≤ 0.05 | ≤ 0.05 |
| 4 | 3102 | ≤ 0.40 | ≤ 0.70 | ≤ 0.10 | 0.05-0.40 | - | - | ≤ 0.30 | - | ≤ 0.10 |
| 5 | 3R03 | ≤ 0.15 | ≤ 0.15 | ≤ 0.01 | 0.90-1.10 | ≤ 0.03 | ≤ 0.03 | ≤ 0.05 | ≤ 0.05 | ≤ 0.05 |
6. Size Tolerance
| Width | Thickness | Wall Thickness | Length | Lateral Curvature | Frontal Curvature | Twsiting Dgree |
| ± 0.05mm | ± 0.03mm | ± 0.05mm | ± 0.03mm | ≤ L× 0.2% | ≤ L× 0.25% | ≤ L× 0.15% |
7.Our products will be tested in strict standard before delivery, some data for your reference.
| No | Products' Testing Name | Contents and requests |
| 1 | Corrosion Resistance | Salt spray test: ≥ 750 hours |
| 2 | Zn Coating Standards | 6/8/10/13± 2g/square meter |
| 3 | Flux Cotaing Standards | 10-15± 2g/square meter |
8.Commercial terms
| Minimum Order Quantity: | 100pcs， less quantity can negotiate |
| Price: | negotiation |
| Payment Terms: | T/T or LC |
| Supply Ability: | 1000,000 pcs per year |
| Delivery Time: | 15-30 working days after received your advance payment |
| Packaging Details: | Standard export packaging |

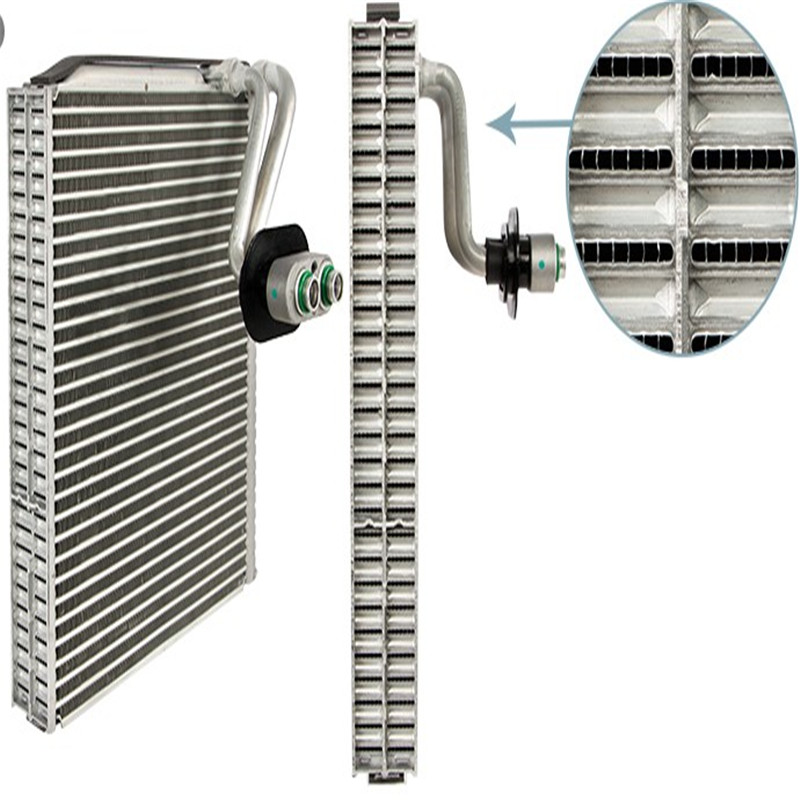

3003 aluminum radiator tube pipe for electric vehicle is widely used for manufacturing of various kinds of heat exchangers:
Air conditioning
Engine cooling
Condensers
Evaporators
Radiators
Heater cores
Charge air coolers/ intercoolers
Engine oil coolers/ transmission oil coolers
1. Since 2006, we have rich experience in this industry in China;
2. Good reputation in aluminum material industry;
3. Design Ability.We have our own development department for new material research;
4. Good experience and cooperation with big client in the world;
5. With Certificate ISO9001-2008;
6. High performance cost ratio;
7. Fast delivery time 15-30 days for flat aluminum micro channel tube;
8. Good communication skills, and good after sells service, and understandings for customers;
FAQ
1, Q: Are you manufacturer of 3003 aluminum radiator tube for electric vehicle?
A: Yes, we are established in 2006. As a manufacturer our customers are welcome to visit our factory or by online video.
2, Q: Do you accept customized orders?
A: Yes, we do. Your customized orders are always welcomed. Please kindly offer us your technical perfrmances or samples so that we can customize the products according to your preferences. About any further detail, please feel free to contact us.
3. Q: How can I get one quotation faster?
A: Pls offer details about your demands as more as possible,insulation thickness,over diameter,nominal voltage,working temperature, color, quantity, application,etc.
4. Q: If I can not offer above information,what should I do?
A: Try your best to offer more information,we will help you design suitable wires&cables.
5. Q: What is your company sample policy?
A: As one supplier,we see that sample is necessary for our both sides,our policy is to offer free sample as possible as we can,just one situation is exception,sample is with very complex structure,besides,we have no it in stock.
About sample shippment,you need to pay for the freight,usually freight collect by express.
6. Q: What is the lead time of sample?
A: There are several different situations:
Immediately when you need it if we have it in stock;
7~15 days if no stocked sample and the sample structure is not complex;
15~30 days if no stocked sample and the sample is with complex structure.
Company Introduction:
Trumony Alumnum Co.LTD build from 2006, have export over 53 countries of worldwide. Our main products are aluminum alloy cladding material, core material and other aluminum products like aluminum coil, aluminum foil, aluminum strip, aluminum radiator tube for vehicle, aluminum pipe, aluminum tube, flat aluminum micro channel tube etc, for automobile heat exchangers area such as radiator, intercooler, condenser, evaporator and industrial heat exchangers, like electricity power radiator, air conditioner etc.There are complete sets of modern production and testing equipment operation workshops for casting, hot rolling, cold rolling, finishing and advanced check-out for researching and testing,such as WDW-3010- micro-controlled electronic universal testing machine,CALS-2000 aluminum alloy metallographic image analysis system etc.
