Home > Products > Multi Jet Water Meter > Remote Reading Cast Brass Jet Meter Multi-Water Meters

Remote Reading Cast Brass Jet Meter Multi-Water Meters

  • Remote Reading Cast Brass Jet Meter Multi-Water Meters
  • Remote Reading Cast Brass Jet Meter Multi-Water Meters
  • Remote Reading Cast Brass Jet Meter Multi-Water Meters
  • Remote Reading Cast Brass Jet Meter Multi-Water Meters

Remote Reading Cast Brass Jet Meter Multi-Water Meters

    Min. Order: 1000 Piece/Pieces
    Brand: Yuedavalve
    Transportation: Ocean
    Place of Origin: China
    Supply Ability: 10000/Month
    Port: Shanghai

Product Description

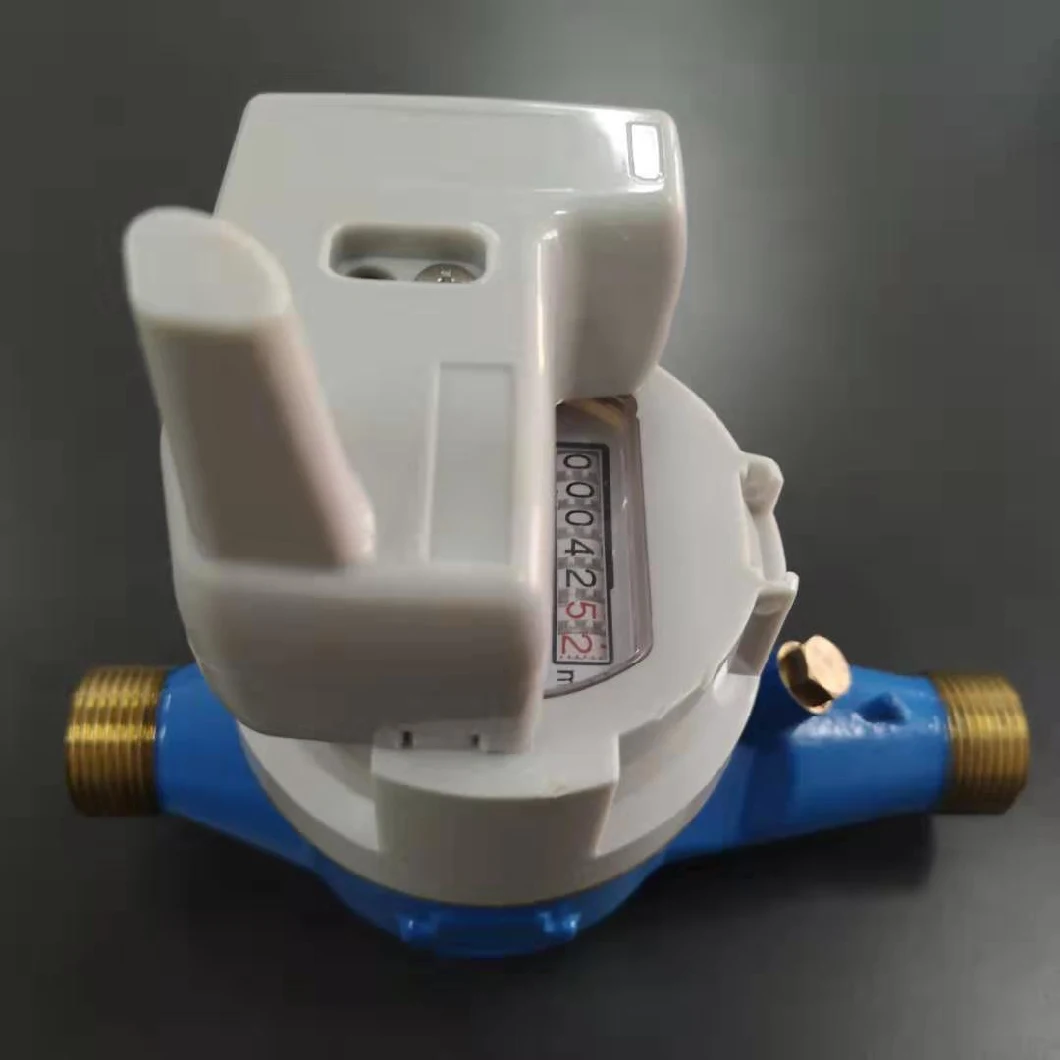

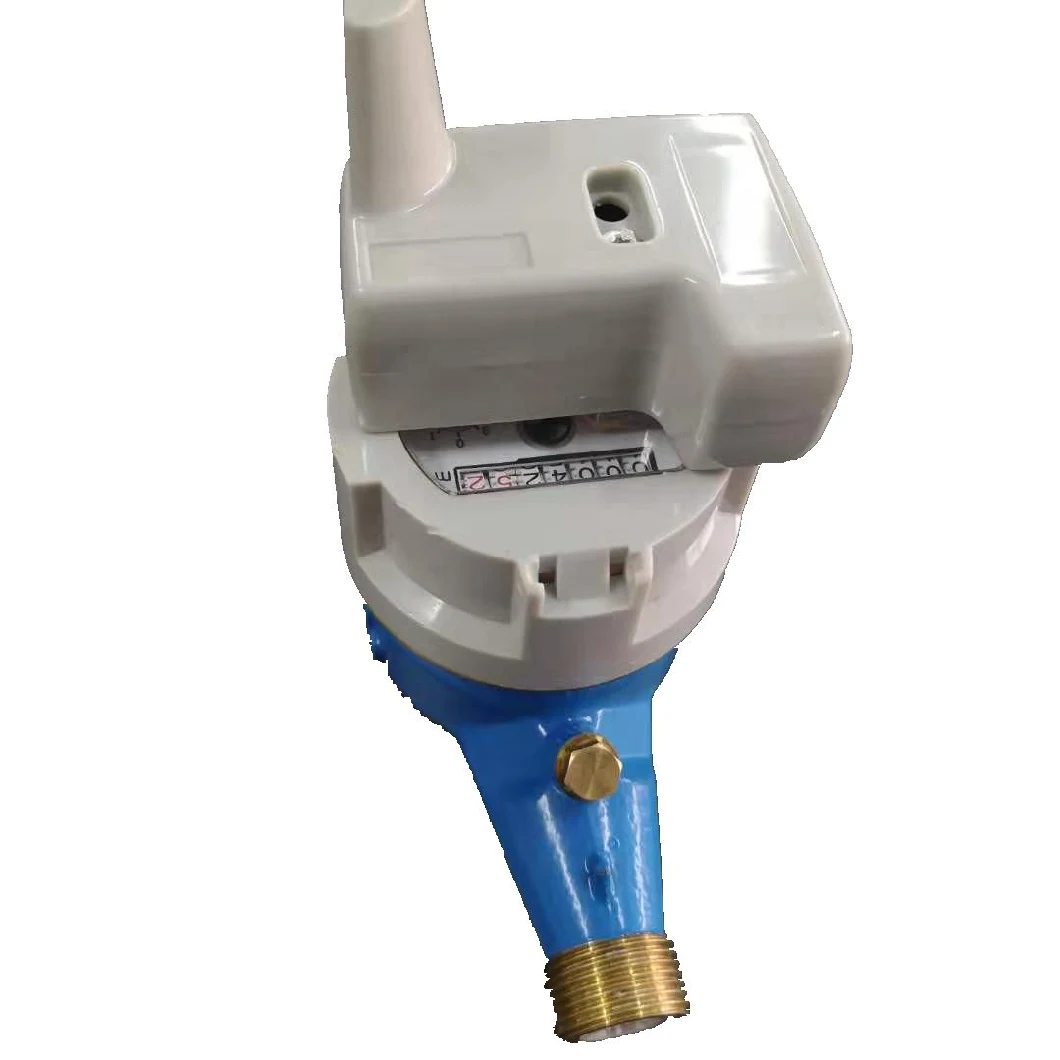

Lorawan R160 Remote Reading Cast Brass Jet Meter Multi Water Flow Meters
ItemLorawan R160 remote reading cast brass jet meter multi water flow meters
MaterialBrass
TypeDry
ModelML603E
BrandOEM
FeaturesRmote Control,Fully electromechanical separation,easy for maintenance
UserDomestic Water Meter
SizeDN15mm~DN25mm (1 /2''~1-1/2'')
certificateISO4064 ISO9001:2008 CE
packingStandard export carton packing,Dimension:250*130*160mm
Lorawan R160 Remote Reading Cast Brass Jet Meter Multi Water Flow Meters

Lorawan R160 remote reading cast brass jet meter multi water flow meters

Description:

Install non-magnetic remote transmission LORA wireless on the ordinary Water Flow Meter :

Features:

Fully electromechanical separation, easy for maintenance; Mechanical and electrical running separately without interference. easy for maintenance; Far more than RF cards,user-friendly,wireless network planning,handset reading.

Alternative: ITRON,ELSTER,Diehl ,Sensus,Acctrue
Lorawan R160 Remote Reading Cast Brass Jet Meter Multi Water Flow Meters


Function introduction

No.

Function name

Function brief introduction

Function parameter

1

Measurement

Using multiple signal sources combination to calculate technic and software anti-interference technology, can check the true  and false of the signal



2

Meter number management

The only identify number of each meter, can only be modified by specialized machine

14 decimal numbers:

000000000000-999999999999

3

Meter base number management

If the water meter has a mechanical counter, the electronic readings and mechanical readings should be consistent.

0000.0000 cube-9999.9999 cube

4

Correction time

Correct anytime without leap year

2000 year~2100 year,

Minimum correction to seconds

5

Reading on assigned day

Save measurement data for a specified day



6

Failure testing

Alarm when strong magnetic interference or short-circuited on sampling line



7

Battery voltage detection

Alarm when the battery voltage reaches the lower limit

The lower limit is based on voltage value, generally lower 0.2~0.4V than battery voltage

8

Remote diagnosis

Meter reading,battery voltage,specified day reading,Failures,Valve Status,balance,Magnetic interference status

remote diagnosis available whenever necessary

Electrical technical parameters

No.

Name

Parameter

Remarks





min

Typical examples

max

unit



1

Main power

+2.7

+3.6

+3.7

V



2

Under-voltage point of the battery

3.1



3.4

V



3

Quiescent working current

9



20

uA



4

Working current while transmission



15



mA



5

Continuous communication intervals

6





year

2.2Ah battery,the remain energy is more than70% after six years

6

Traffic rate



2400



bd



7

Communication distance





500

m

Related to loaded amount

8

Normal working temperature

-10



50

ºC

No LCD

9

Storage temperature

-20



60

ºC



10

Humidity



85%






Lorawan R160 Remote Reading Cast Brass Jet Meter Multi Water Flow Meters
